The characteristics of brushless motor: small size, high torque, high efficiency, low energy consumption, low noise, high speed, long life, high reliability, low interference, stable operation, good starting-braking effect, high control accuracy, low maintenance cost, wide range of use and other advantages. DC brushless motor consists of motor body and driver, which is a typical mechatronic product. Compared with traditional brushed DC motors, brushless motors are safer and more reliable. The precision micro motors we produce with faster speed, which greatly improve industrial efficiency and create value for our customers. We are able to provide professional one-stop solutions and technical support, and can customize brushless motors according to customers' needs, as well as OEM and ODM services.
| Motor model | YH-U2812A-800KV-001 | |
| Motor core specification size | Φ23*Φ10*12-12 | |
| Motor external dimensions | Φ28.2*25.9 | |
| Motor paddle installation method and (mounting dimensions) | Quick release paddle | |
| Motor test paddle size | 9450S | |
| No-load test | No-load voltage V | 12.6V |
| No-load current A | ≤0.5 | |
| No-load speed rpm | 11031~10388 | |
| KV | 850±25.5 | |
| Load test (full throttle) | Load voltage V | 12.6V |
| Load current A | ≤8.8 | |
| Load speed rpm | / | |
| Load lift g | ≥630 | |
| Motor weight g | 53.5±2g | |
| Motor applications | Quadcopter | |
| Motor model | YH-U2905A-830KV-001 | |
| Motor core specification size | Φ24*Φ10*5.2-12 | |
| Motor external dimensions | Φ28.6*20.2 | |
| Motor paddle installation method and (mounting dimensions) | Screw fixing (Φ10-M2) | |
| Motor test paddle size | 6 inch two-blade paddle | |
| No-load test | No-load voltage V | 15.2V |
| No-load current A | ≤0.4 | |
| No-load speed rpm | 11977~13254 | |
| KV | 830±41.5 | |
| Load test (full throttle) | Load voltage V | 15.2 |
| Load current A | ≤7 | |
| Load speed rpm | ≥9600 | |
| Load lift g | ≥530 | |
| Motor weight g | 27.5~30.5 | |
| Motor applications | Quadcopter | |
| Motor model | YH-U4306A-430KV-001 | |
| Motor core specification size | Φ39*Φ15*6-18 | |
| Motor external dimensions | Φ43.6*19 | |
| Motor paddle installation method and (mounting dimensions) | Screw fixing (Φ12-M3) | |
| Motor test paddle size | 12 inches | |
| No-load test | No-load voltage V | 22.8 |
| No-load current A | ≤0.8 | |
| No-load speed rpm | 10100.4~9507.6 | |
| KV | 430±13 | |
| Load test (full throttle) | Load voltage V | 22.8 |
| Load current A | ≤12 | |
| Load speed rpm | ≥6000 | |
| Load lift g | ≥1600 | |
| Motor weight g | 70±2 | |
| Motor applications | Quadcopter | |
| Motor model | YH-U6708A-210kv-001 | |
| Motor core specification size | Φ60*Φ35.5*8-24 | |
| Motor external dimensions | Φ67.5*23.6 | |
| Motor paddle installation method and (mounting dimensions) | Screw fixing (Φ18-M3) | |
| Motor test paddle size | 16.5 inches | |
| No-load test | No-load voltage V | 35v |
| No-load current A | ≤1.5 | |
| No-load speed rpm | 4445~4865 | |
| KV | 133±6 | |
| Load test (full throttle) | Load voltage V | 45.6 |
| Load current A | ≤20 | |
| Load speed rpm | ≥4630 | |
| Load lift g | / | |
| Motor weight g | 170~180 | |
| Motor applications | Quadcopter | |
| Motor model | YH-FB4306B-430KV-001 | |
| Motor core specification size | Φ39*Φ15*6-18 | |
| Motor external dimensions | Φ51.5*30 | |
| Motor paddle installation method and (mounting dimensions) | Screw fixing (Φ12-M3) | |
| Motor test paddle size | 12 inches | |
| No-load test | No-load voltage V | 22.8 |
| No-load current A | ≤0.85 | |
| No-load speed rpm | 10830~11514 | |
| KV | 490±15 | |
| Load test (full throttle) | Load voltage V | 22.8 |
| Load current A | ≤15 | |
| Load speed rpm | ≥6000 | |
| Load lift g | ≥1800 | |
| Motor weight g | 160±5 | |
| Motor applications | Quadcopter | |
| Motor model | YH-FB4306A-430KV-001 | |
| Motor core specification size | Φ39*Φ15*6-18 | |
| Motor external dimensions | Φ50*24.1 | |
| Motor paddle installation method and (mounting dimensions) | Screw fixing (Φ12-M3) | |
| Motor test paddle size | 12 inches | |
| No-load test | No-load voltage V | 22.8 |
| No-load current A | ≤0.8 | |
| No-load speed rpm | 10100.4~9507.6 | |
| KV | 430±13 | |
| Load test (full throttle) | Load voltage V | 22.8 |
| Load current A | ≤12 | |
| Load speed rpm | ≥6000 | |
| Load lift g | ≥1600 | |
| Motor weight g | 115±5 | |
| Motor applications | Quadcopter | |

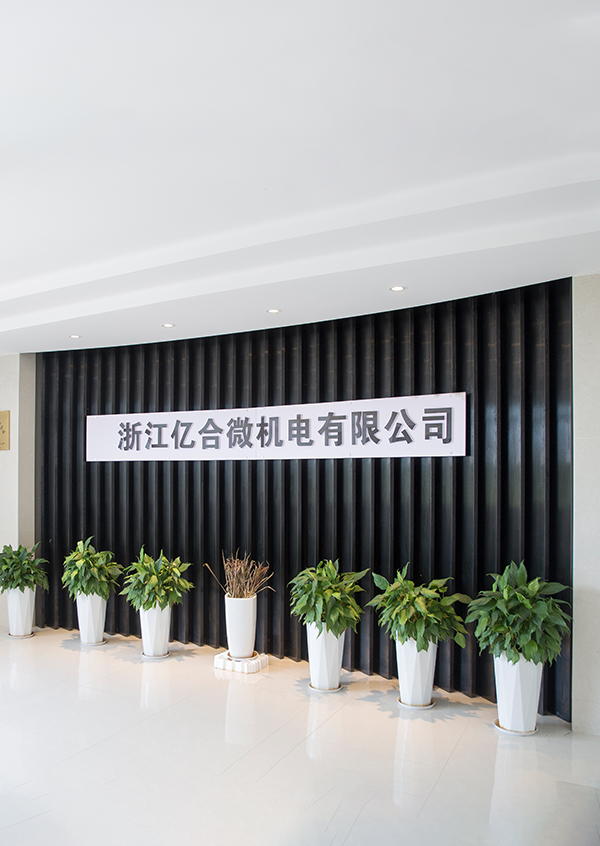

Zhejiang Yihe Microelectronics Co., Ltd. was transformed from Jiaxing Micro-Jin Precision Motor Co., LTD. Founded in 2018. As Wholesale Brushless DC Motors Suppliers in China, The company plant area of 3000 square meters, set research and development, production, sales as one. Intelligent digital factory, comfortable workshop environment, standardized office. At present, there are 20 R&D personnel, 150 production line employees, and a professional automation equipment team.
The company specializes in the production of brushless motor. OEM/ODM DC Brushless Motors Company. The core team has been engaged in this industry for more than 10 years. The application fields cover high-end UAV, smart home, security equipment, health industry, leisure industry, medical industry, white goods, unmanned driving, and other fields related to transmission. The company has obtained ISO9001 qualification, according to ISO9001 standardized management. The company has obtained the Zhejiang province science and technology enterprise, and the high-tech enterprise qualification is also under review. The company has obtained a number of patents, including invention patents..
With the mission of building a century-old enterprise, the company is determined to become the leader in China's brushless motor industry. The company's business philosophy is "integrity, innovation, service and win-win", adhering to the purpose of "quality first, customer first", and continuously delivering our best quality products for various industries.
Our factory adheres to the business tenet of "Quality and Credit". Wholesale Brushless Motors Company
